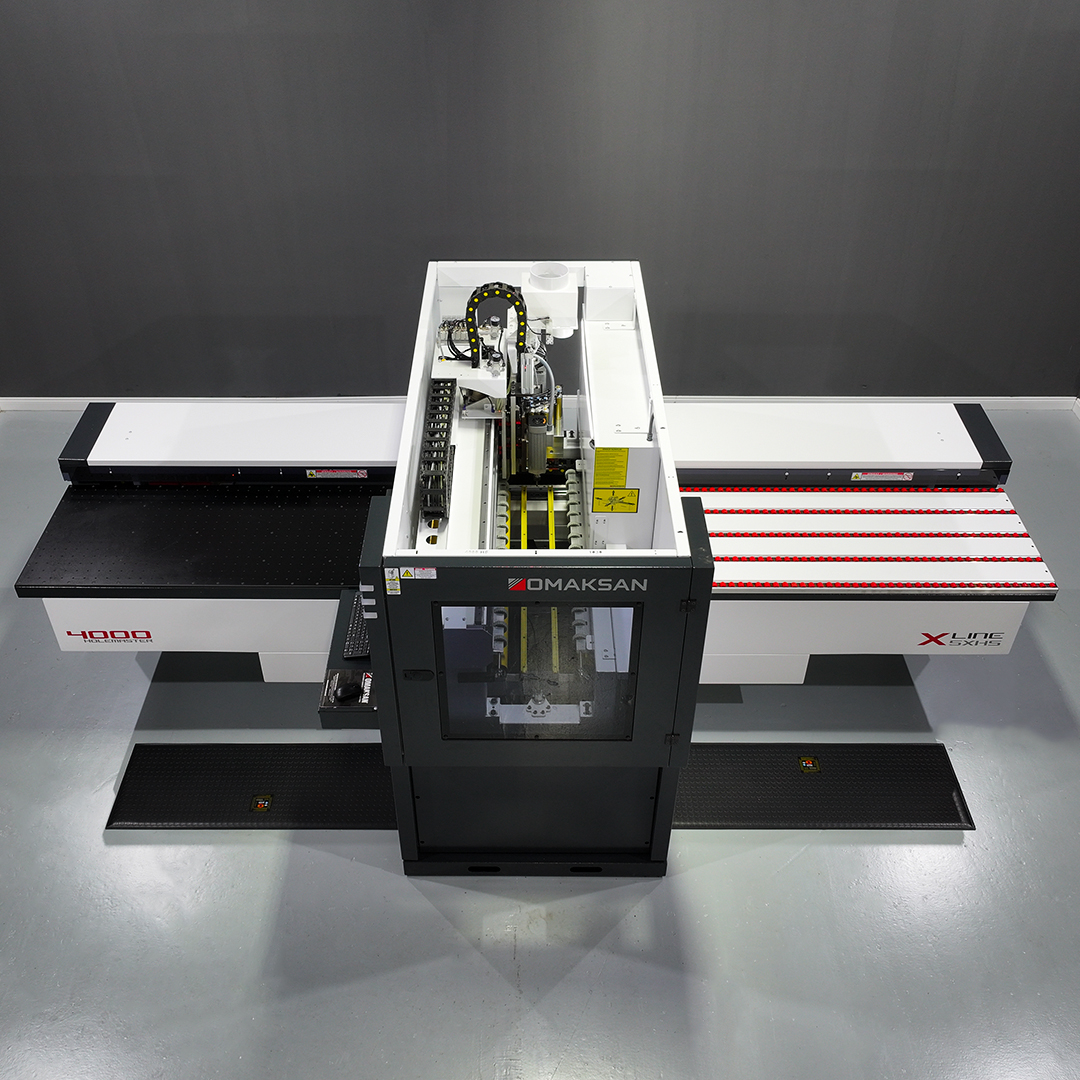

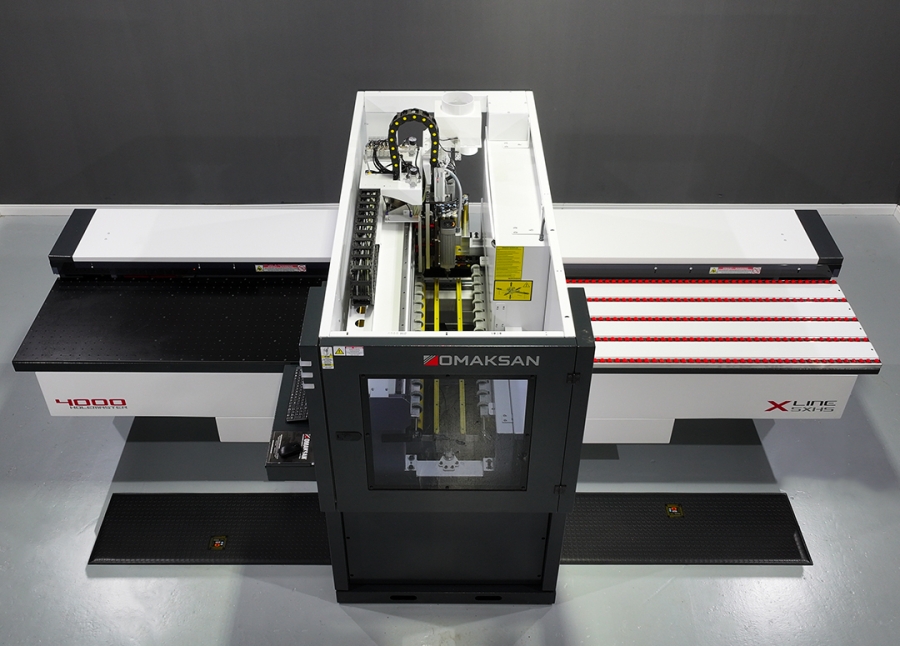

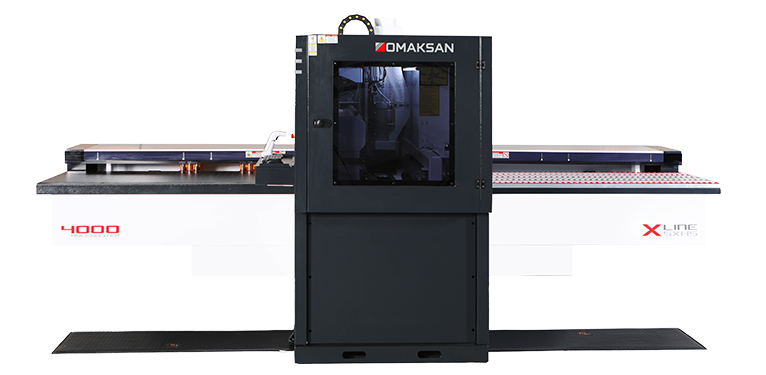

4000 X LINE HS
THE BEST QUALITY/PRICE MACHINE IN THE MARKET
Holemaster 4000 X Line HS can perform drilling, grooving and milling operations precisely and in accordance with mass production.

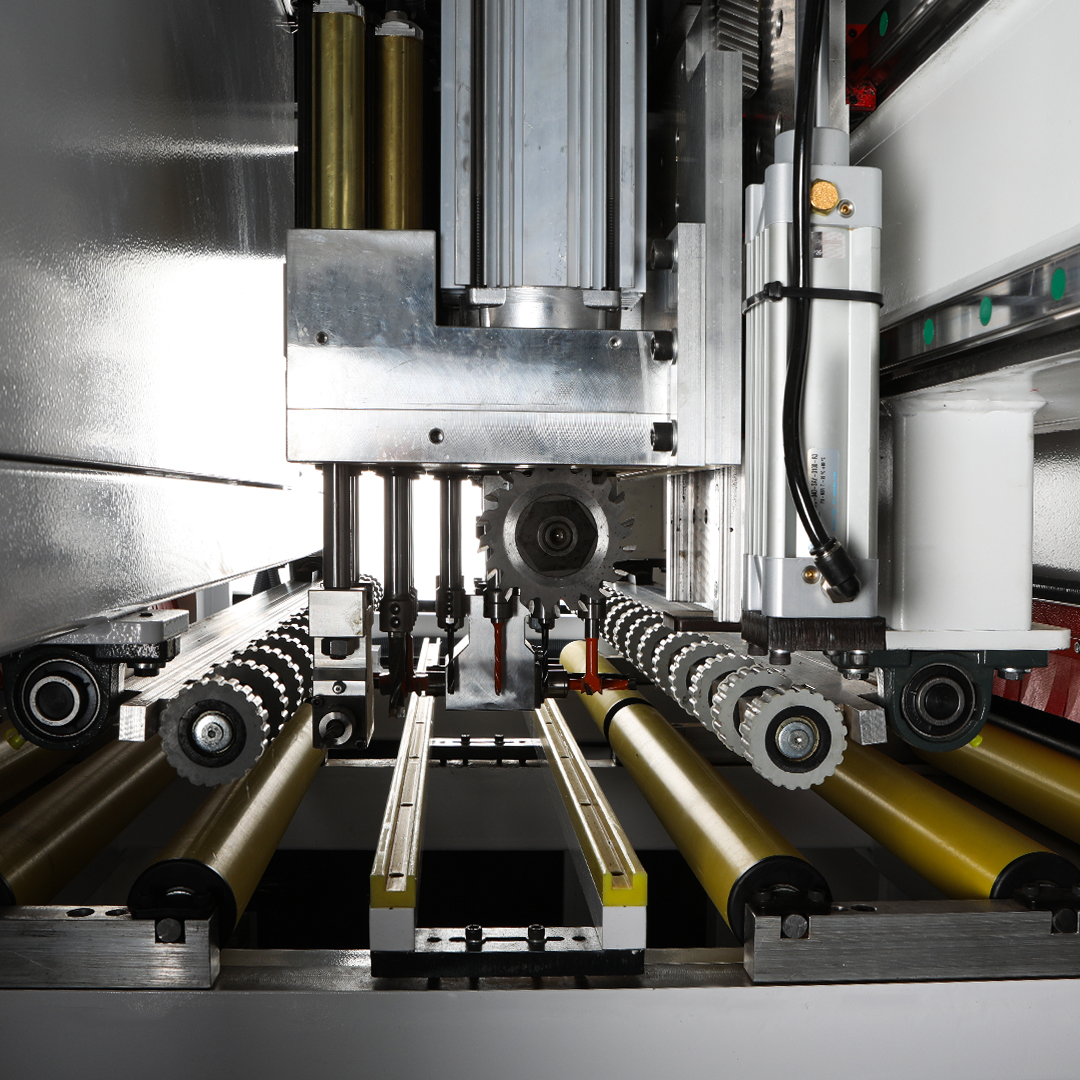

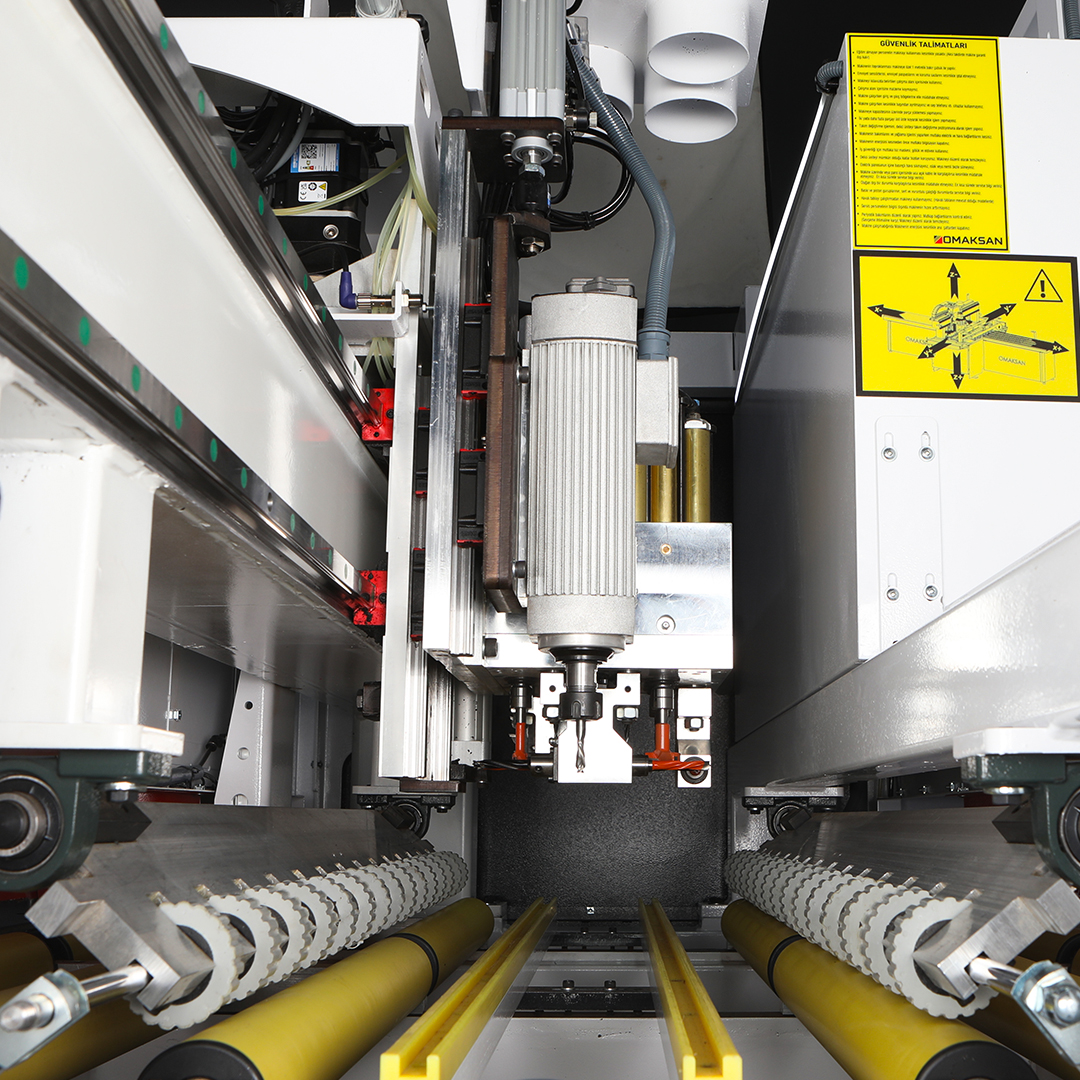

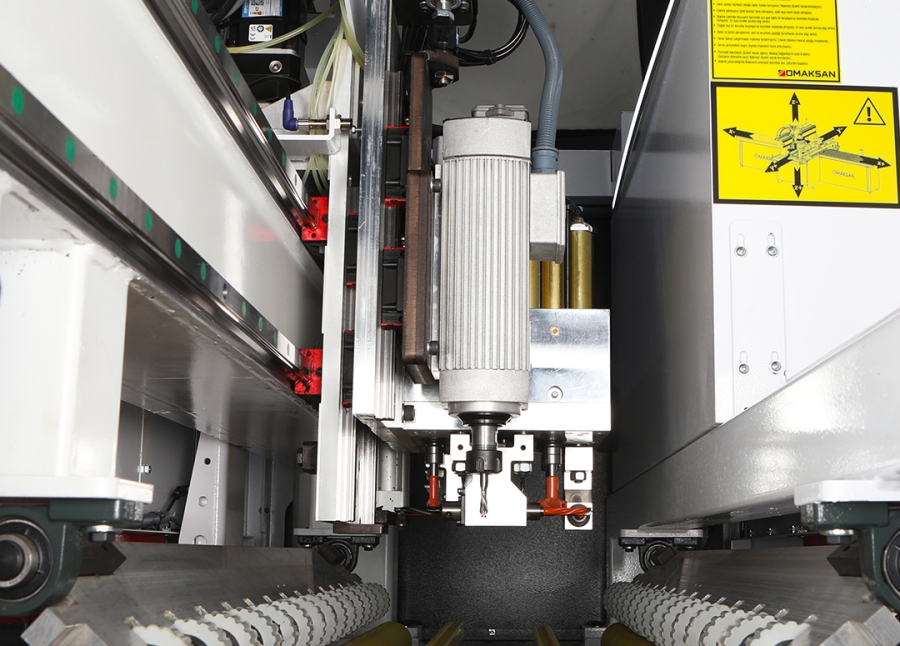

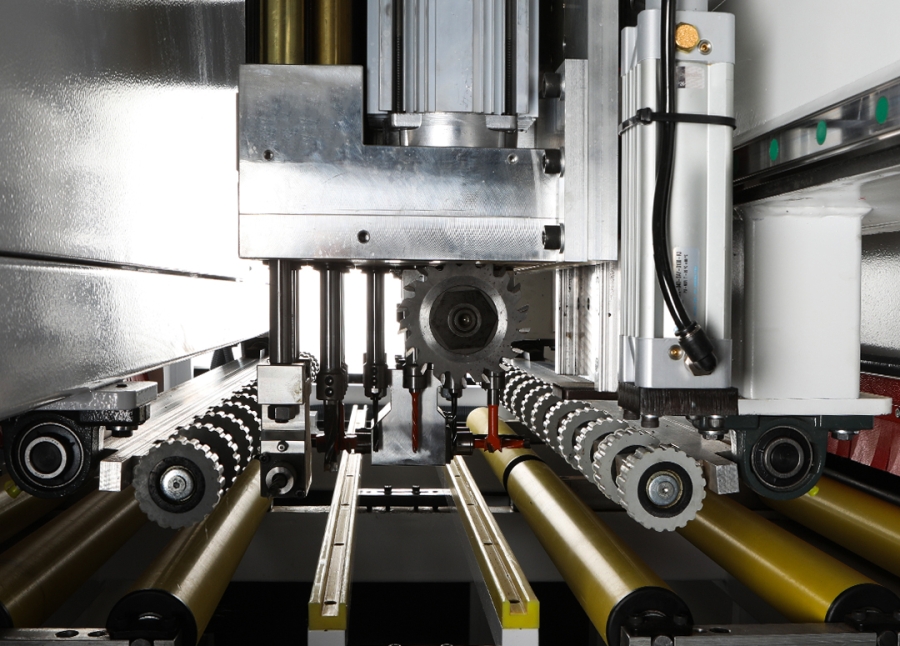

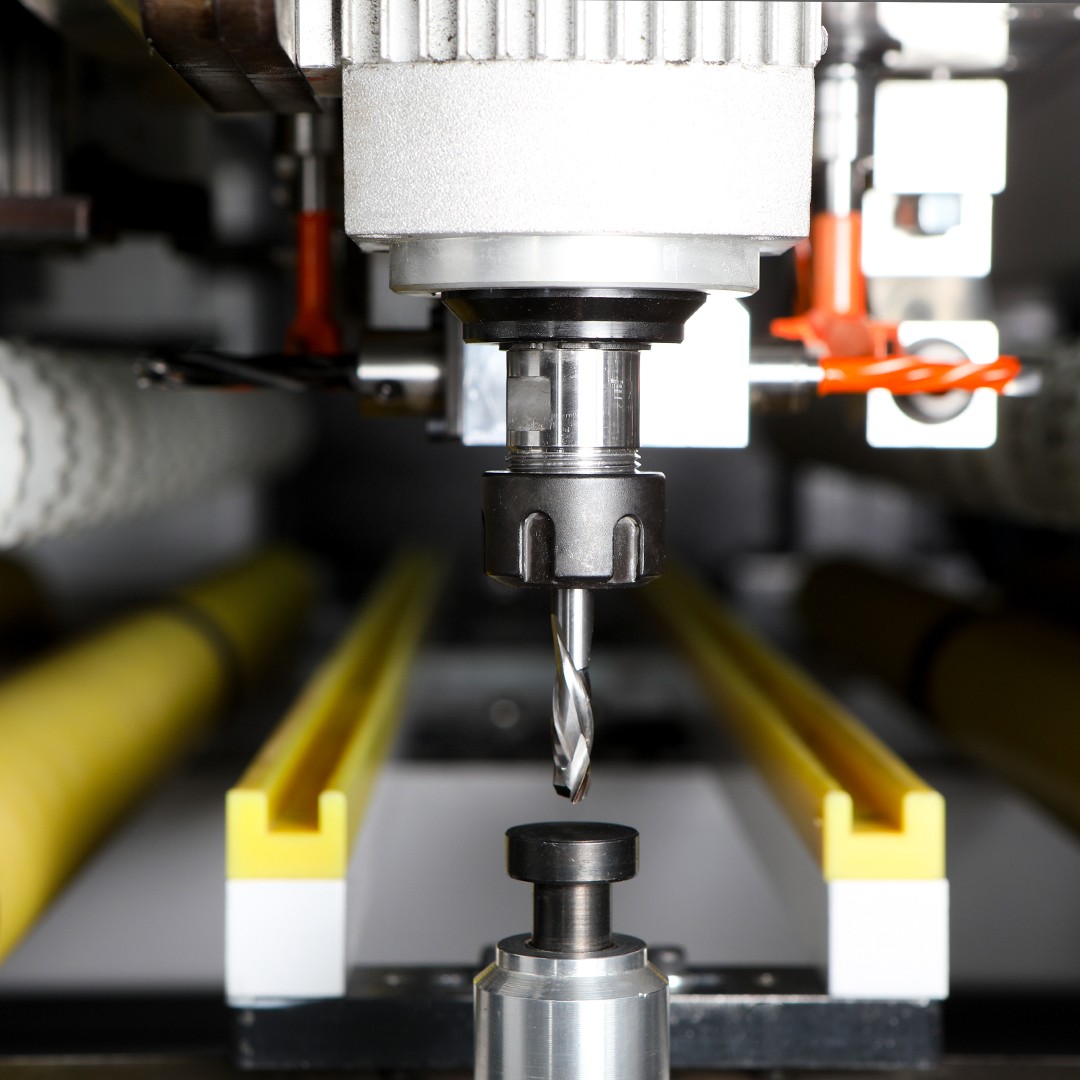

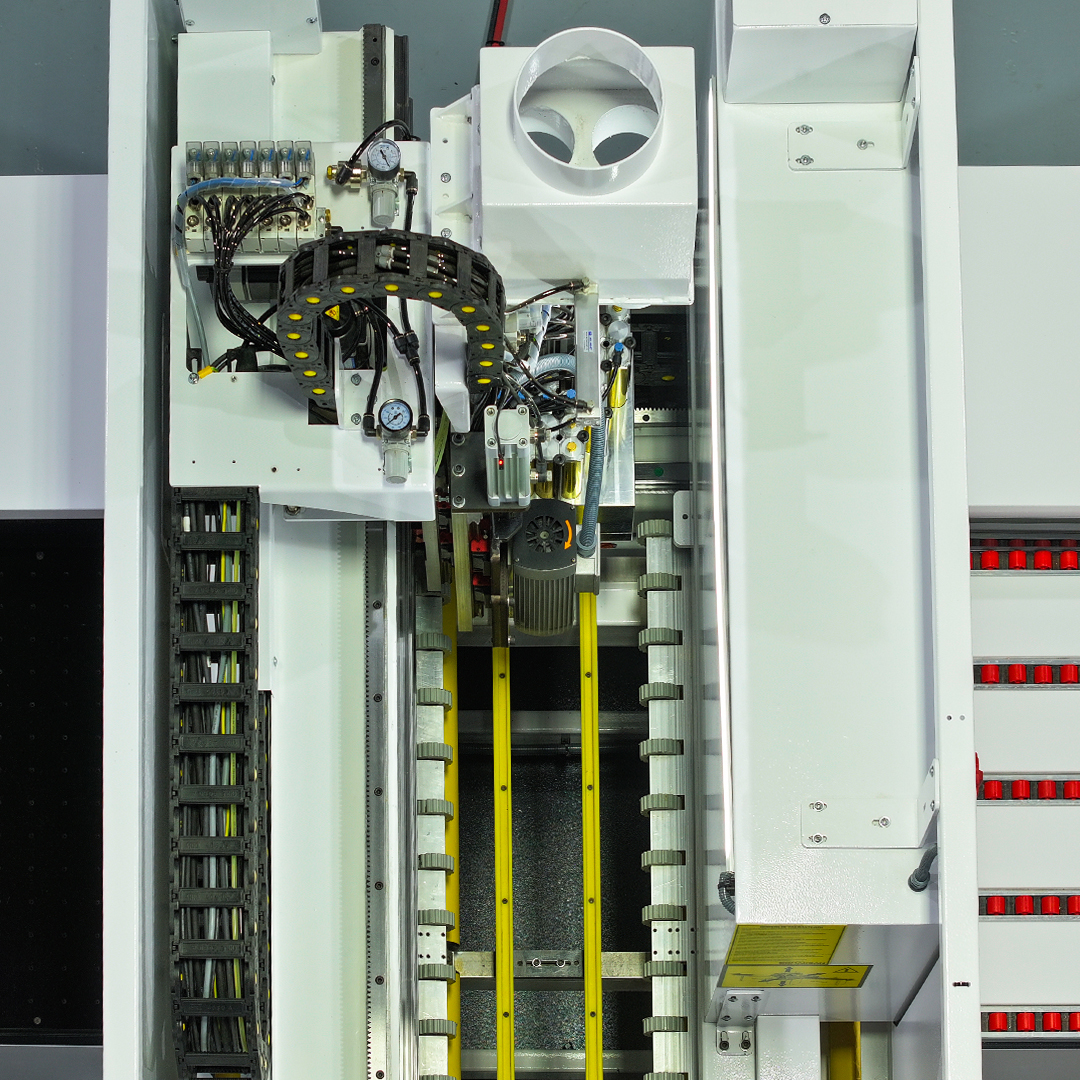

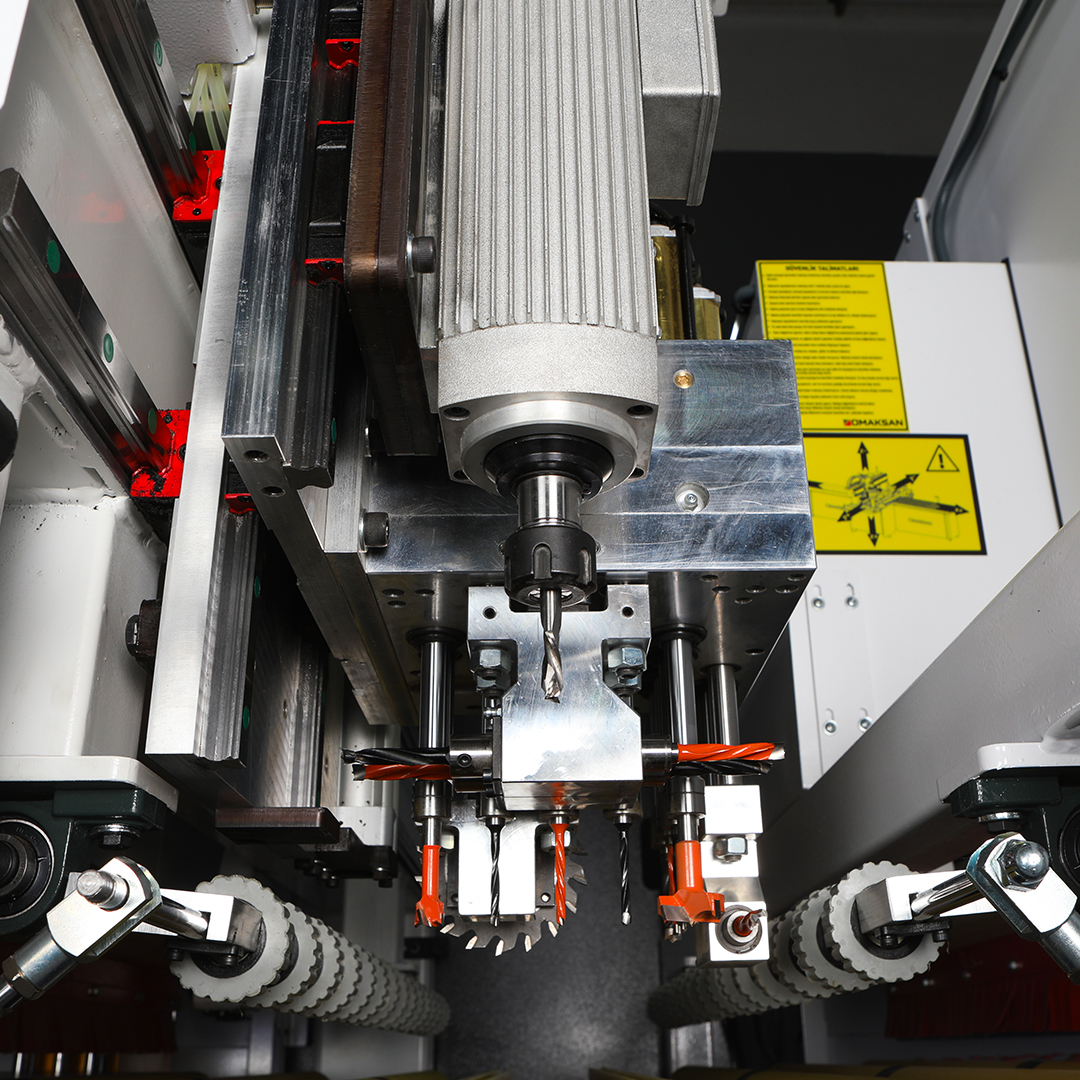

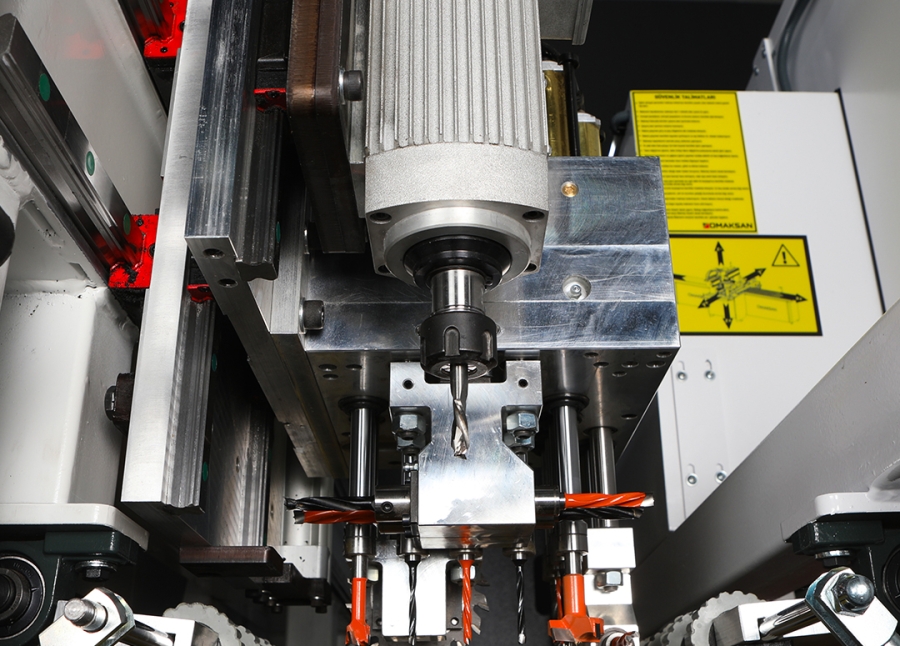

Holemaster 4000 X Line HS has 8 vertical, 6 horizontal and 1 saw blade drilling unit and 2 kw milling spindle. Holemaster 4000 X Line HS is 3 axis servo-controlled CNC Drilling Machine.
Holemaster 4000 X Line can perform drilling processes for 4 sides and top surfaces of the woodpiece for modular furniture system fasteners (minifix,
blum, hinge, shelf pins, dowel, rafix...) and milling process on top surface of the woodpiece. Holemaster 4000 X Line HS can perform modular furniture
processes (circle empyting, square empyting, curve edge cutting, corner rounding, linear cutting etc.) easily.

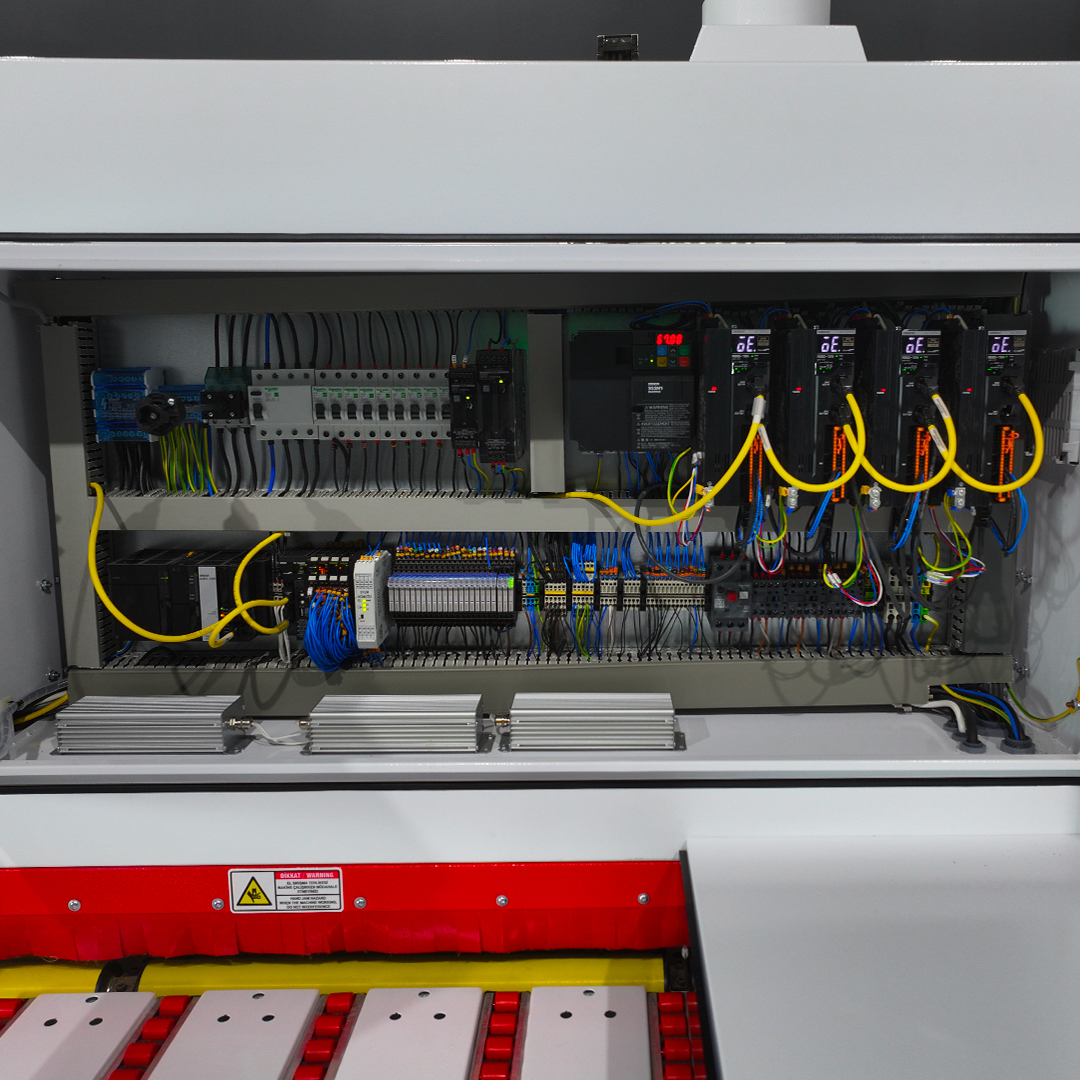

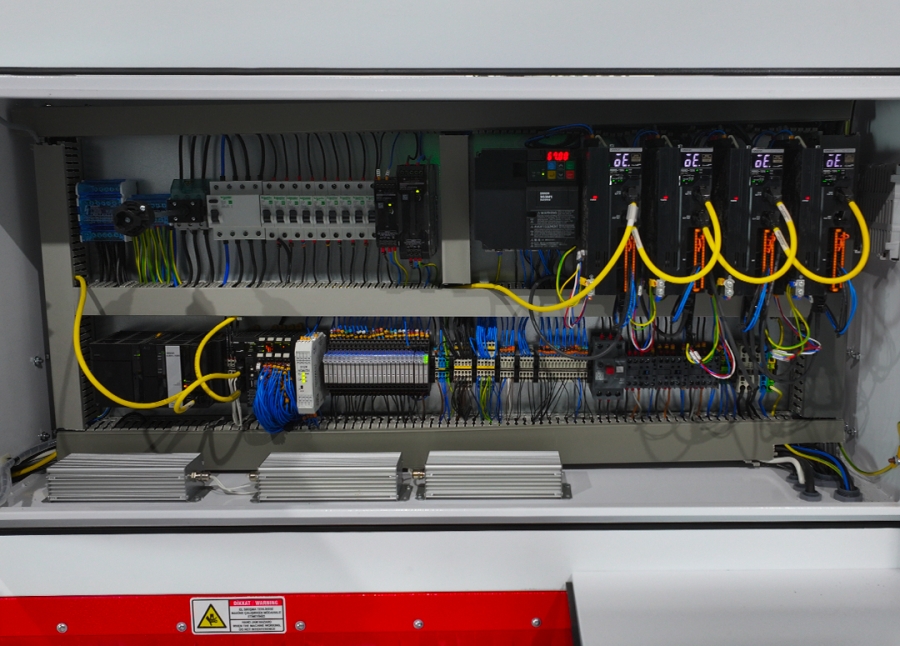

Each movement is selectively controlled by independent servo motors, ensuring high precision and reliable positioning.
Technical Specifications
|
Panel uzunluğu, mm |
Panel length, mm |
80–4500 |
|
Panel genişliği, mm |
Panel width, mm |
40–1300 |
|
Panel kalınlığı, mm |
Panel thickness, mm |
8–45 |
|
Besleme hızı (X), m/dak |
Feed Rate (X), m/min |
120 |
|
Eksen boyunca maksimum hız (Y), m/dak |
Maximum speed along the axis (Y), m/min |
60 |
|
Eksen boyunca maksimum hız (Z), m/dak |
Maximum speed along the axis (Z), m/min |
15 |
|
Delici Grup Sayısı, adet |
Number of drilling groups, pcs |
1 |
|
Dikey Matkap Sayısı (Üst grup), adet |
Number of vertical drills (upper group), pcs |
8 |
|
Yatay Matkap Sayısı, adet |
Number of horizontal drills, pcs |
6 |
|

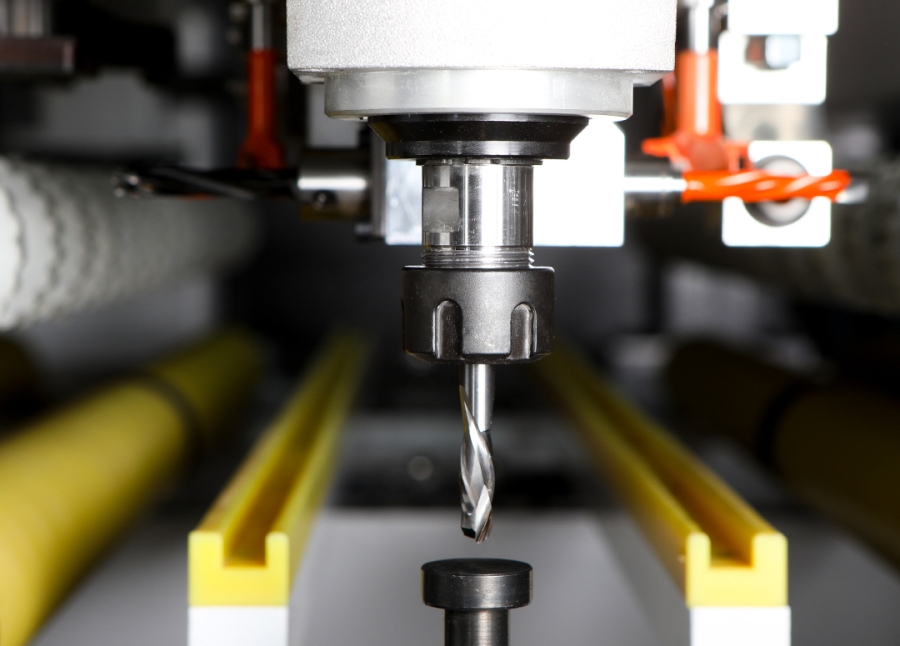

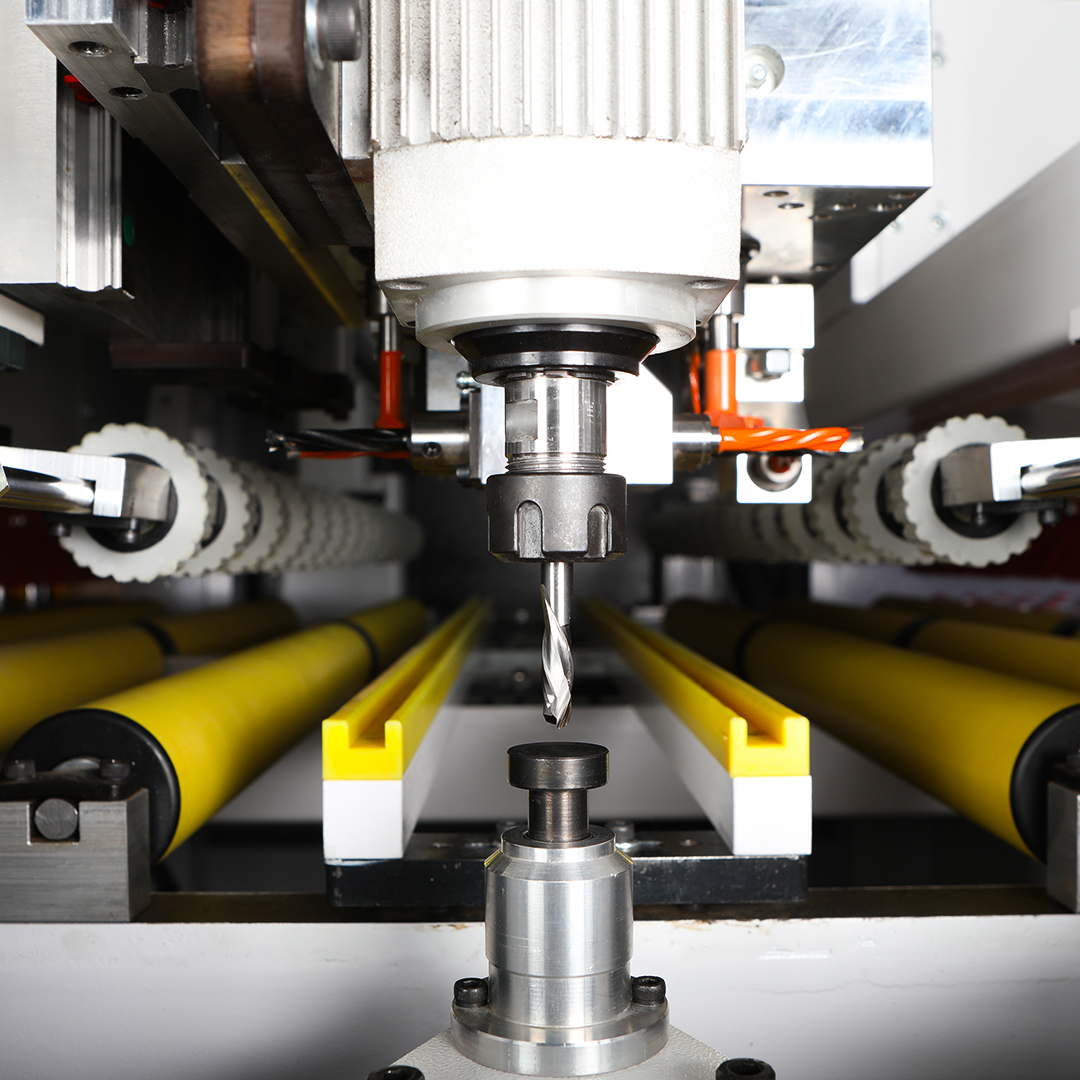

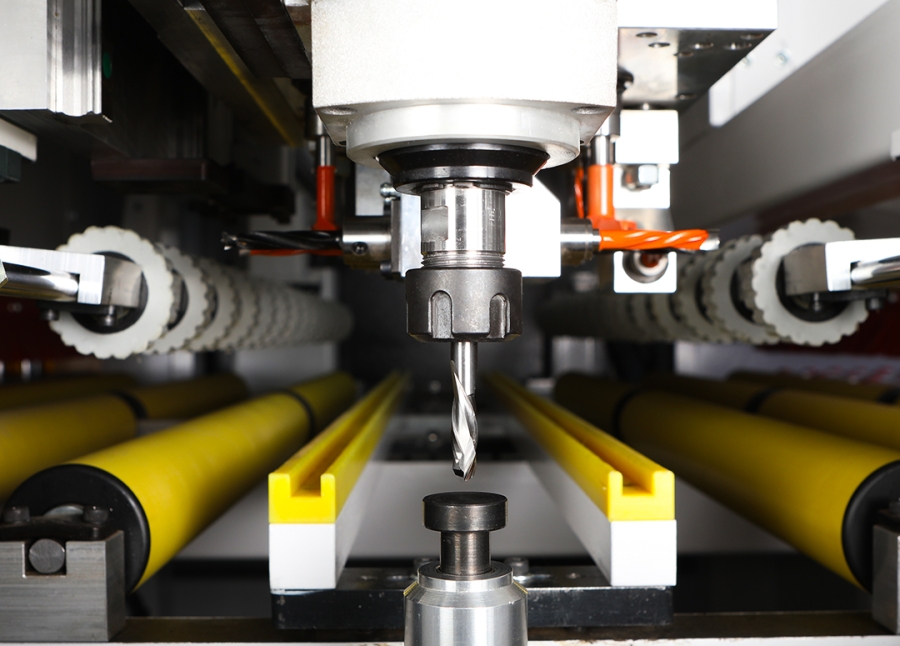

Frezeleme Ünitesi (Üst), kW |
Milling unit (upper), kW |
2.2 |
|
Freze Boy Ölçme |
Milling cutter length measurement |
Available / Mevcut |
|
Lazer ile Parça Boyu Ölçme |
Laser part length measurement |
Optional / Opsiyonel |
|
Kanal Açma Ünitesi (Testere Boyutu), mm |
Grooving unit (saw blade size), mm |
100 X 20 X 4-6 |
|
Toplam Güç, kW |
Total power, kW |
15 |
|
Çalışma basıncı, bar |
Working pressure, bar |
7 |
|
Makine boyutları (U × G × Y), mm |
Machine dimensions (L × W × H), mm |
4610 x 2230 x 2000 |
|
Ağırlık, kg |
Weight, kg |
1500 |
|

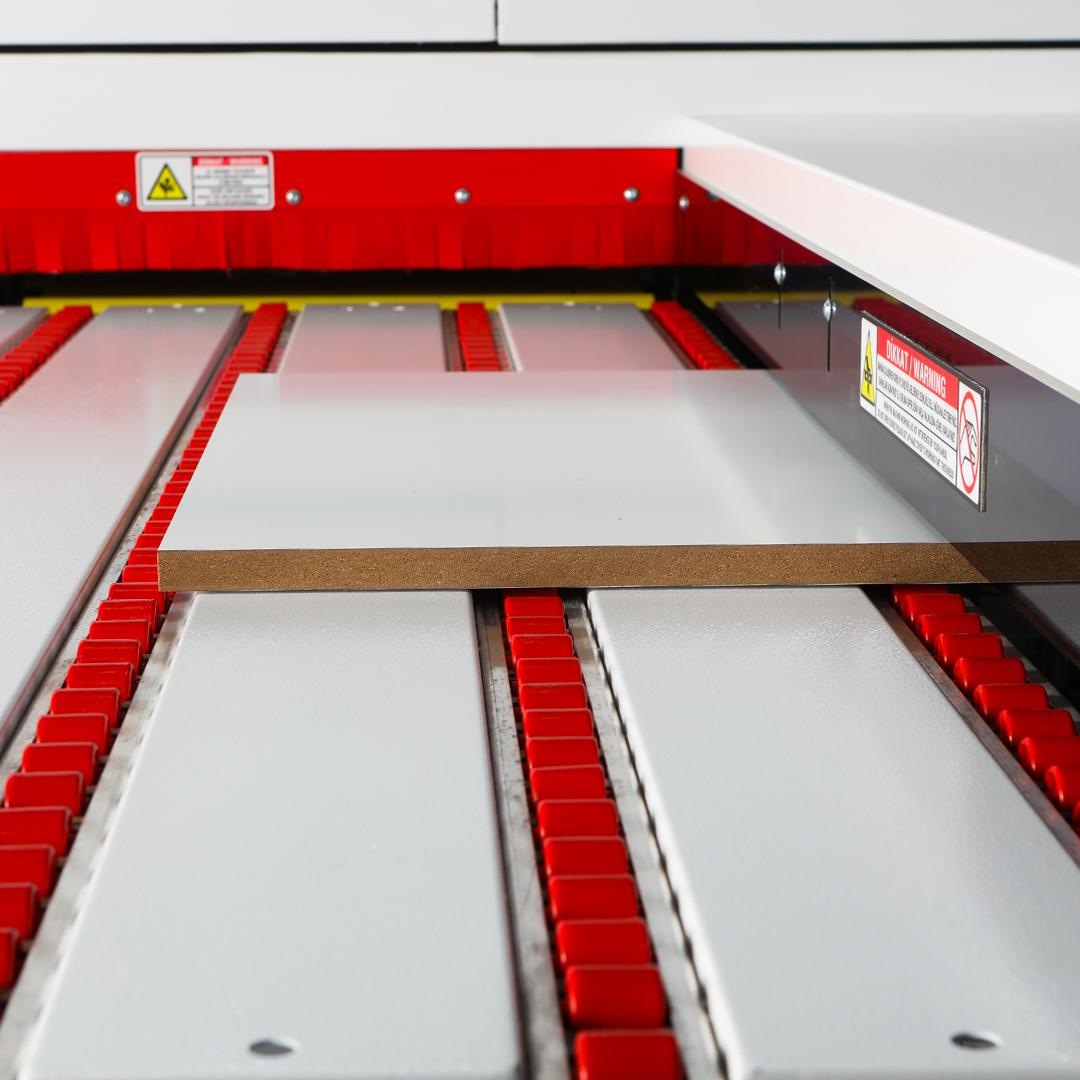

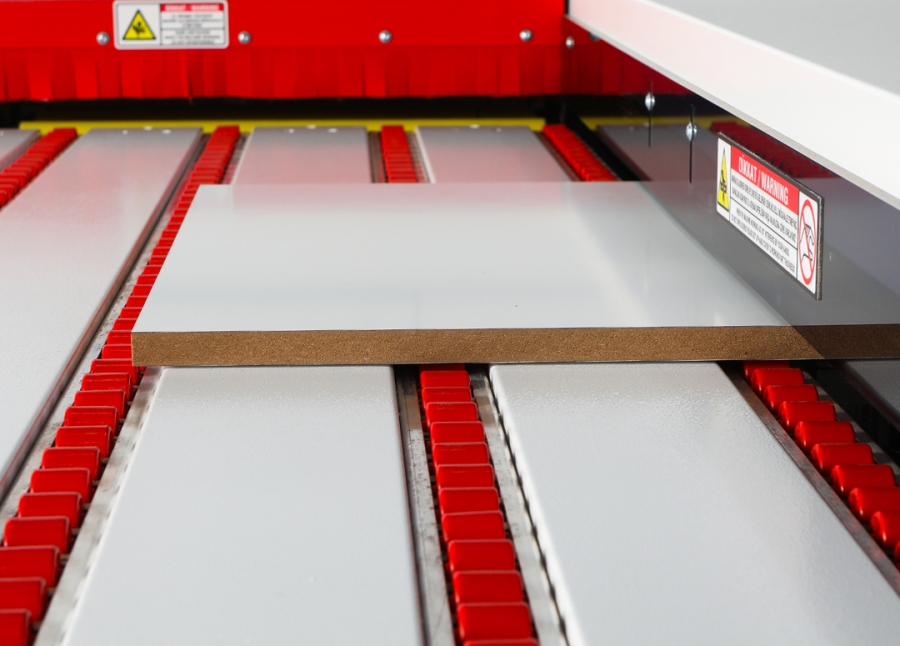

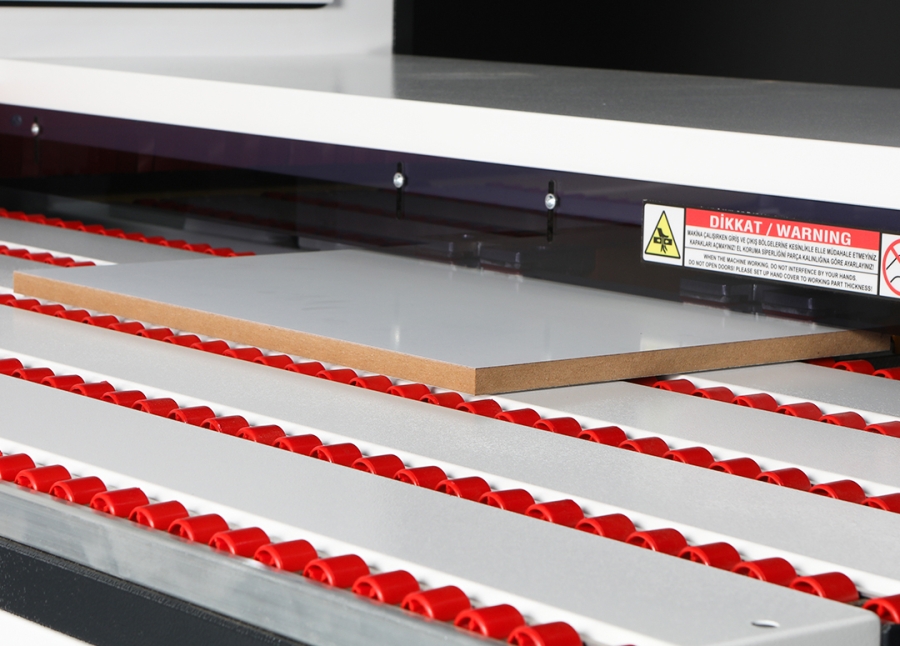

Boşaltma Sistemi |
Extraction System |
Roller Table / Makaralı Tabla |
|

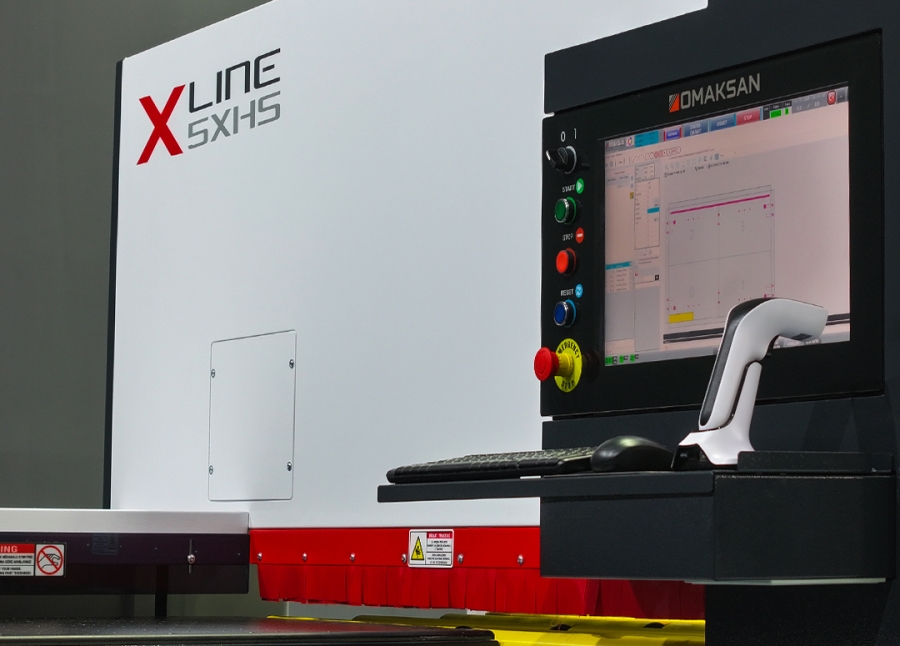

Barkod Okuyucu |
Barcode reader |
Optional / Opsiyonel |
|
Toz Emme Çıkış Çap mm |
Dust Extraction Outlet Diameter mm |
1 x 180mm Upper |
VİDEO
Holemaster 4000 X Line HS can perform drilling, grooving and milling operations precisely and in accordance with mass production.
