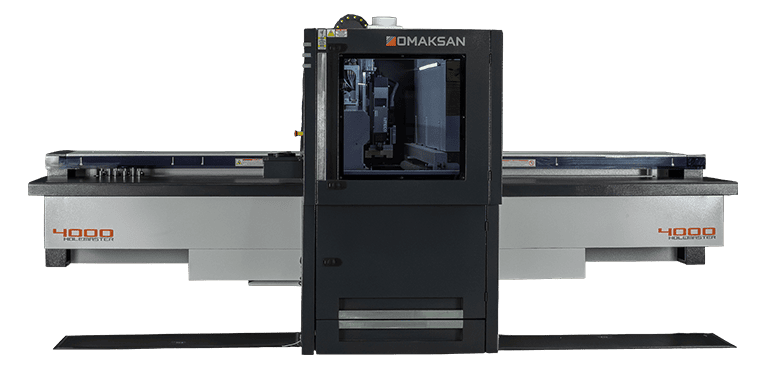

4000 SMART 6X FASTER
HIGH SPEED DRILLING ON 6 SURFACES OF THE PART WITH DOUBLE DRILLING UNIT!
Holemaster 4000 Smart 6X Faster is designed to perform 6 sided drilling processes at once in order to provide sensitive processes.

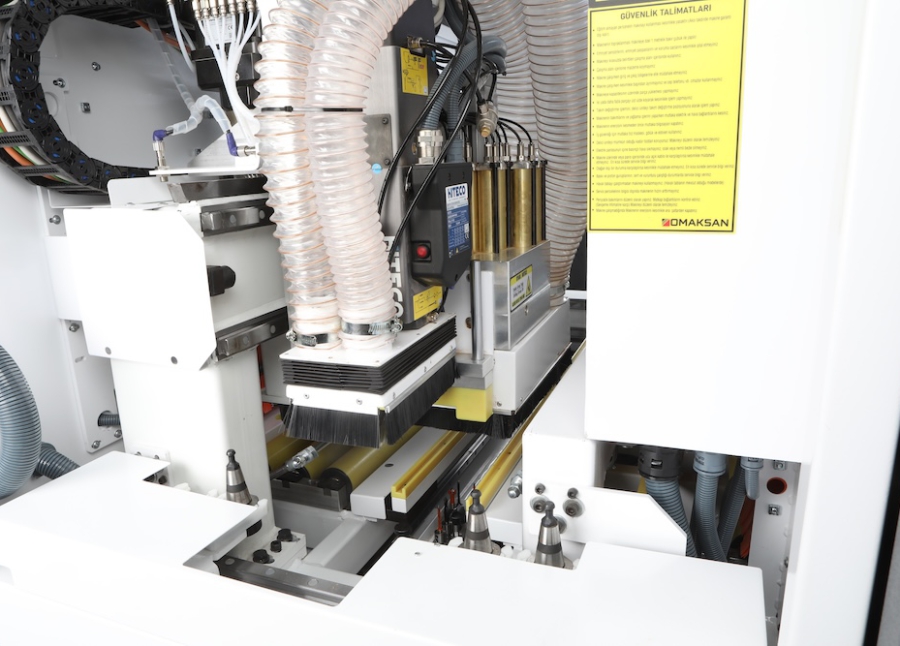

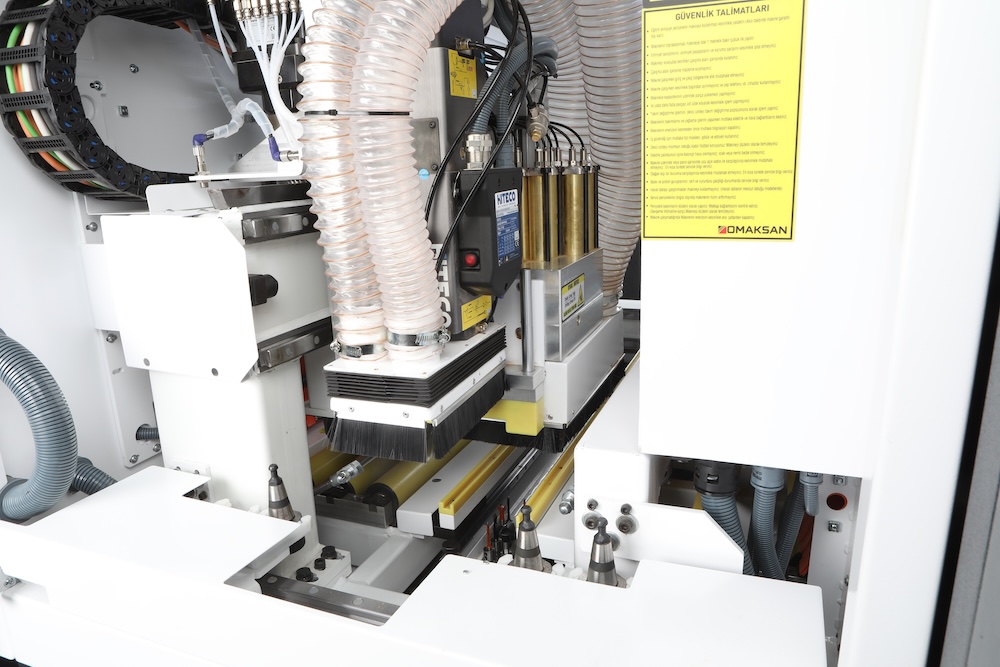

Holemaster 4000 Smart 6X Faster possess for upper processes; It has drilling head which is consisted of 8 vertical bits,6 horizontal

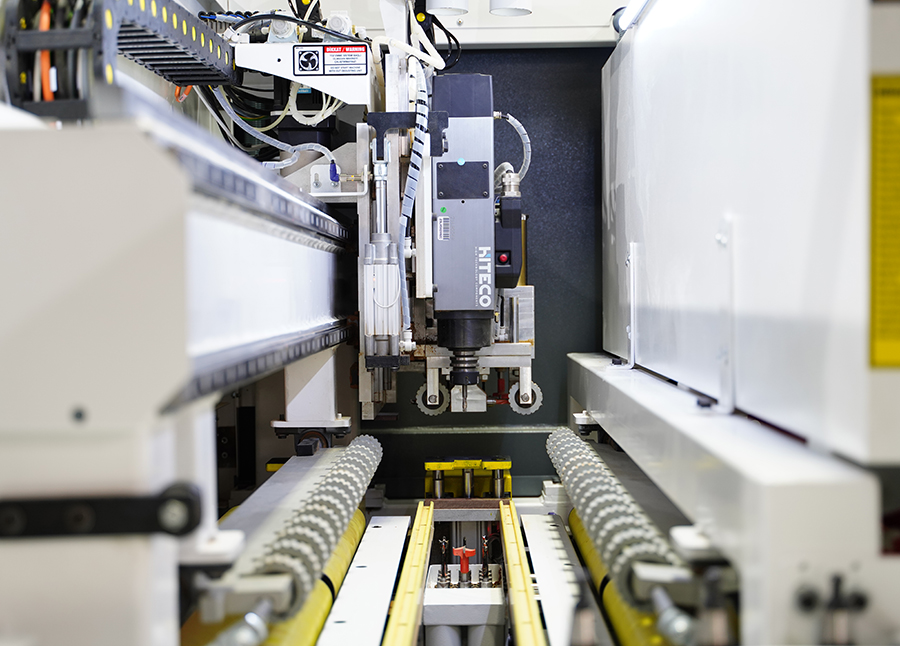

bits and 1 saw blade. Holemaster 4000 Smart 6X Faster has 4,5 kw milling spindle. Holemaster 4000 Smart 6X Faster possess the things below for
lower processes; Lower drilling head has 10 vertical drilling bits.

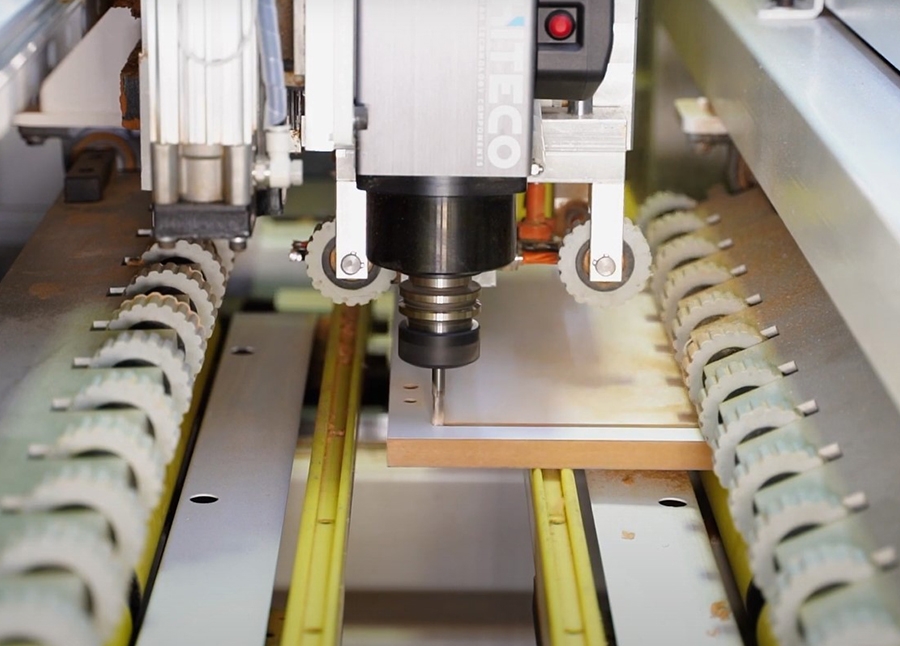

Holemaster 4000 Smart 6X Faster can carry out 6 sides drilling process with its upper and lower boring heads and milling processes for modular furniture processes (circle emptying, square emptying, curve edge cutting, corner rounding, linear cutting...) easily with its 4,5-kw milling spindle.
Each movement is selectively controlled by independent servo motors, ensuring high precision and reliable positioning.
Technical Specifications
|
Panel uzunluğu, mm |
Panel length, mm |
80–4500 |
|
Panel genişliği, mm |
Panel width, mm |
40–1300 |
|
Panel kalınlığı, mm |
Panel thickness, mm |
8–45 |
|
Besleme hızı (X), m/dak |
Feed rate (X), m/min |
140 |
|
Delici Grup Sayısı, adet |
Number of drilling groups, pcs |
1+1 |
|
Dikey Matkap Sayısı (Üst grup), adet |
Number of vertical drills (upper group), pcs |
8 |
|
Yatay Matkap Sayısı, adet |
Number of horizontal drills, pcs |
6 |
|
Dikey Matkap Sayısı (Alt grup), adet |
Number of vertical drills (lower group), pcs |
10 |
|
Frezeleme Ünitesi (Üst), kW |
Milling unit (upper), kW |
4.5 |
|
Frezeleme Ünitesi (Alt), kW |
Milling unit (lower), kW |
2.2 |
|
Freze Boy Ölçme |
Milling cutter length measurement |
Available / Mevcut |
|
Lazer ile Parça Boyu Ölçme |
Laser part length measurement |
Optional / Opsiyonel |
|
Otomatik Takım Değiştirme |

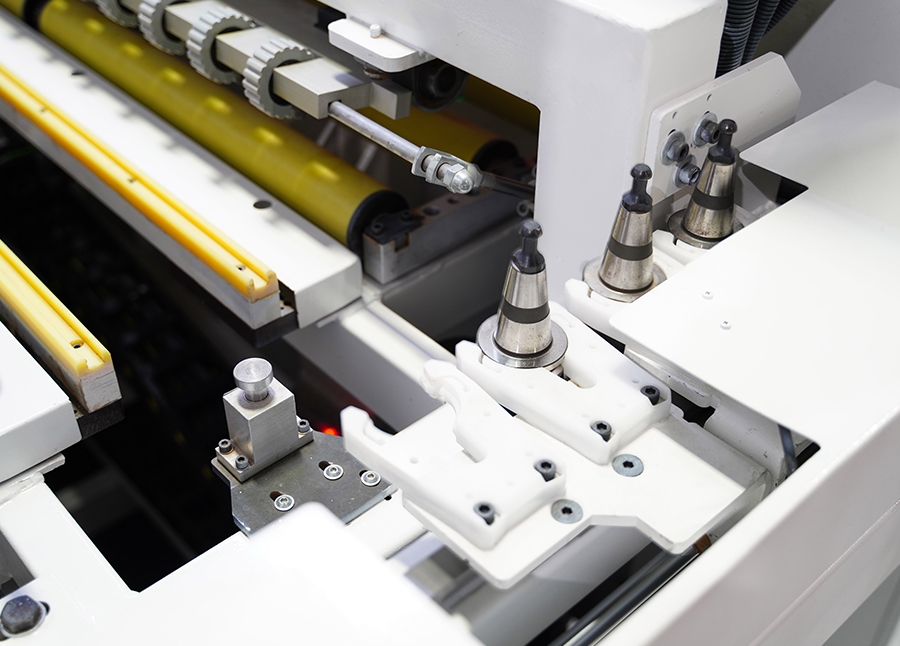

Automatic tool change |
4 |
|
Kanal Açma Ünitesi (Testere Boyutu), mm |
Grooving unit (saw blade size), mm |
100 X 20 X 4-6 |
|
Toplam Güç, kW |
Total power, kW |
27 |
|
Çalışma basıncı, bar |
Working pressure, bar |
7 |
|
Makine boyutları (U × G × Y), mm |
Machine dimensions (L × W × H), mm |
4610 X 2455 X 2050 |
|
Ağırlık, kg |
Weight, kg |
2100 |
|
Boşaltma Sistemi |
Extraction System |

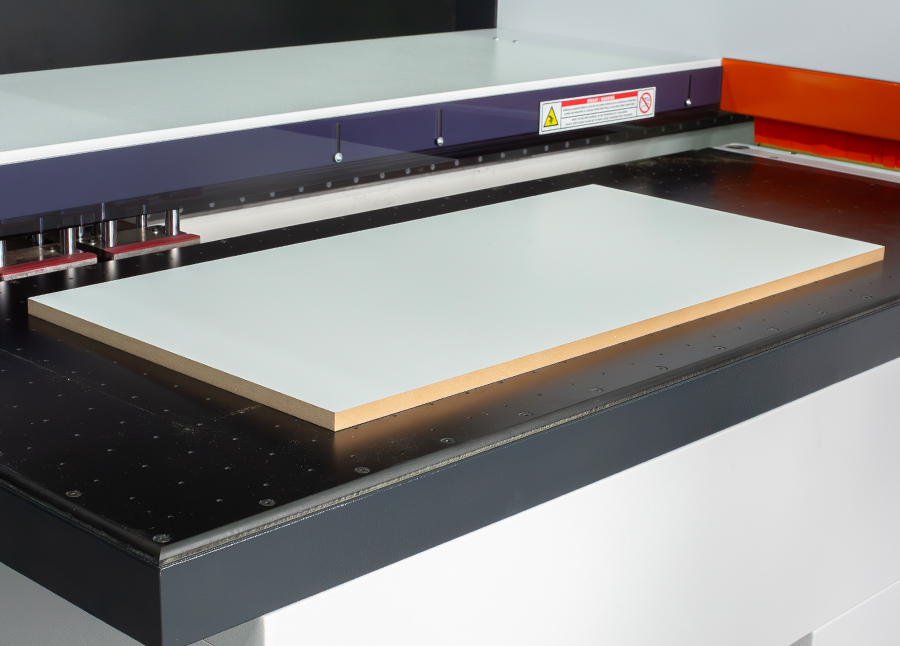

Air Table / Havalı Tabla |
|
Barkod Okuyucu |
Barcode reader |
Available / Mevcut |
|
Toz Emme Çıkış Çap mm |
Dust extraction outlet diameter mm |
1 x 180mm Upper, 1x 100mm Lower |
VİDEO
Holemaster 4000 Smart 6X Faster is designed to perform 6 sided drilling processes at once in order to provide sensitive processes.
