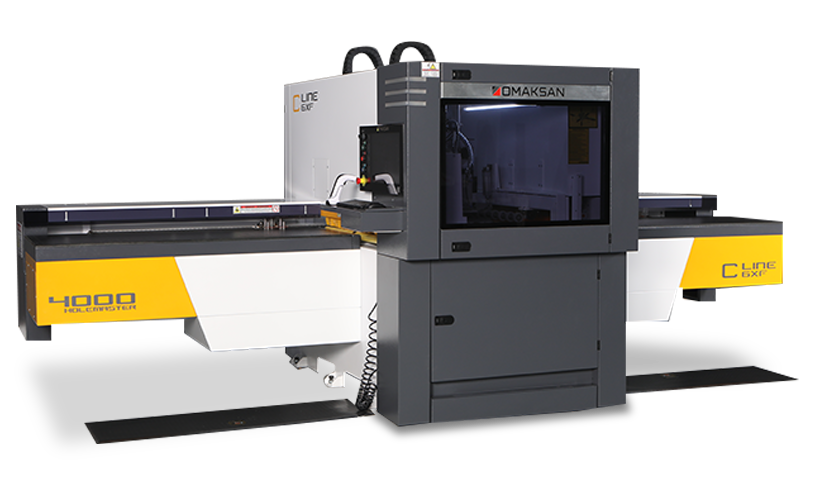

4000 C LINE 6X FASTER
STRONG STRUCTURE, SUPERIOR PERFORMANCE, EXCELLENT SPEED WITH 3 DRILLING UNITS!
Holemaster 4000 C Line 6X Faster can carry out drilling, grooving and milling processes precisely and in accordance with mass production.
The Holemaster 4000 C LINE 6X Faster is equipped with a dual drilling unit on the top side of the machine for surface operations, featuring a total of 18 vertical and 16 horizontal drills. In addition, the bottom drilling unit includes 9 vertical drills. The machine is also equipped with a 4 kW milling motor on the top unit and a 2.2 kW milling motor on the bottom unit.

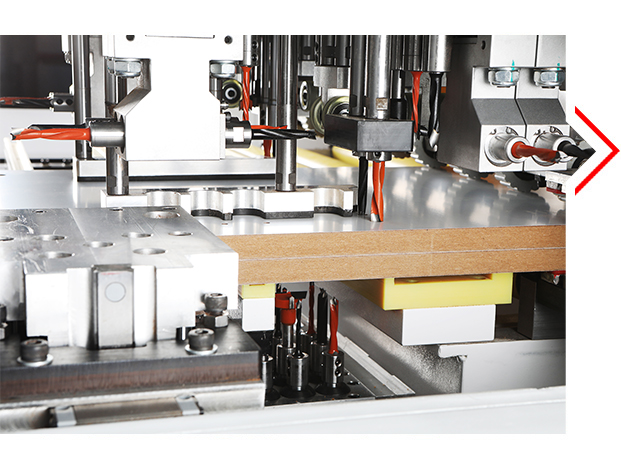

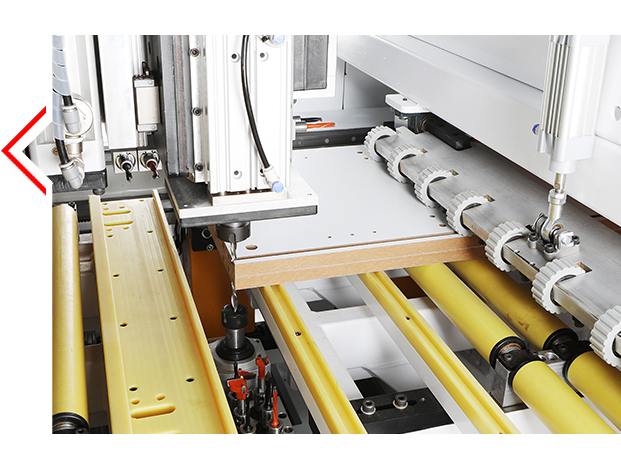

Holemaster 4000 C Line 6X Faster possesses 2 special designed upper boring heads which has 20 vertical,16 horizontal bits and 2 saw blades in order to carry out superfast drilling process on the top surface and 4 sides of the panel and 10 vertical bits lower boring head in order to perform drilling processes on 6 sides of the panel.
Each movement is selectively controlled by independent servo motors, ensuring high precision and reliable positioning.
Technical Specifications
|
Panel uzunluğu, mm |
Panel length, mm |
80–4500 |
|
Panel genişliği, mm |
Panel width, mm |
40–1200 |
|
Panel kalınlığı, mm |
Panel thickness, mm |
8–45 |
|
Besleme hızı (X), m/dak |
Feed Rate (X), m/min |
140 |
|
Delici Grup Sayısı, adet |
Number of drilling groups, pcs |
2+1 |
|
Dikey Matkap Sayısı (Üst grup), adet |
Number of vertical drills (upper group), pcs |
18 |
|
Dikey Matkap Sayısı (Alt grup), adet |
Number of vertical drills (lower group), pcs |
9 |
|
Yatay Matkap Sayısı, adet |
Number of horizontal drills, pcs |
16 |
|
Freze Boy Ölçme |
Milling Length Measurement |
Available / Mevcut |
|
Lazer ile Parça Boyu Ölçme |
Laser Part Length Measurement |
Optional / Opsiyonel |
|
Frezeleme Ünitesi (Üst), kW |
Milling unit (upper), kW |
4 |
|
Frezeleme Ünitesi (Alt), kW |
Milling unit (lower), kW |
2.2 |
|
Toplam Güç, kW |
Total power, kW |
34 |
|
Çalışma basıncı, bar |
Working pressure, bar |
7 |
|
Makine boyutları (U × G × Y), mm |
Machine dimensions (L × W × H), mm |
4840 X 2490 X 2100 |
|
Ağırlık, kg |
Weight, kg |
2200 |
|
Boşaltma Sistemi |
Extraction System |
Air Table / Havalı Tabla |
|
Barkod Okuyucu |
Barcode reader |
Available / Mevcut |
|
Toz Emme Çıkış Çap mm |
Dust Extraction Diameter mm |
2 x 180mm Upper, 1x 100mm Lower |
VİDEO
Holemaster 4000 C Line 6X Faster can carry out drilling, grooving and milling processes precisely and in accordance with mass production.
