Feature Description (English)
X-Axis Motor Power 2 x 1.5 kW (High-Torque)
Y-Axis Motor Power 1.5 kW
Z-Axis Motor Power 1.5 kW (With Brake)
Boring Unit 10-Spindle Vertical Drilling Unit
Spindle Motor 11 kW (Heavy-Duty)
Spindle Speed Max. 24,000 RPM
Vacuum Pump 250 m3/h Capacity (Dry Type)
Vacuum Zones 12 Independent Vacuum Zones
Work Table 30 mm Special Aluminum Work Table
Lubrication Centralized Lubrication Unit
Software Alphacam Essential 2D CAD/CAM (Unlimited License)
Tool Changer (ATC) 12-Slot Static Tool Magazine

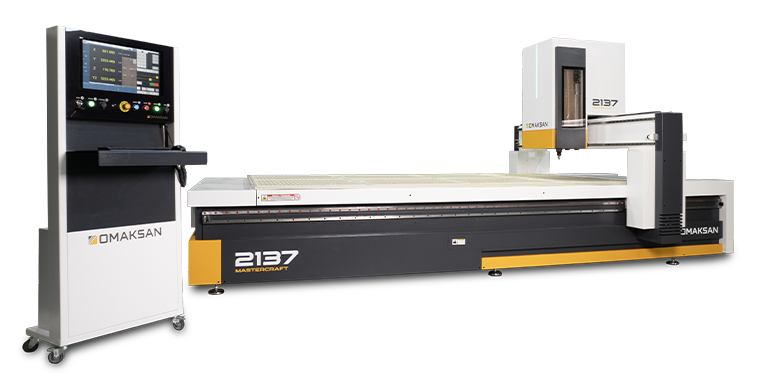

The torsion-resistant, fully electro-welded steel frame and powerful 250 m³/h vacuum pump ensure vibration-free operation even under the heaviest production conditions. With its high-precision machining capability, the Mastercraft 2137 Pro guarantees your production quality.
Kitchen Cupboard
Bathroom Cabinet
Furniture
Cupboard
|
Çalışma Alanı |
Working Area |
2100x3700 (mm) |
|
Z Ekseni Çalışma Aralığı |
Z Axis Working Range |
200 (mm) |
|
Maksimum Malzeme Kalınlığı |
Maximum Material Thickness |
80 (mm) |
|
Spindle Motor Gücü |
Spindle Motor Power |
11 (kw) |
|
Spindle Motor Devri |
Spindle Motor Speed |
24.000 (rpm) |
|
Takım Kapasitesi |
Linear Tool Capacity |
12 Takım / Tools |
|
CAD/CAM Program |
CAD/CAM SOFTWARE |
Alphacam Essential 2D |
|
Kontrol Ünitesi |
Control Unit |
Bilgisayar Tabanlı Windows/Computer-based Windows |
|
Kurulu Güç |
Installed Power |
30 (kw) |
|
Vakum Pompası |
Vacuum Pump |
250 (m³/h) |
|
Ağırlık |
Weight |
4000 (kg) |
